Specifications

Detailed Description

This 2-way male receptacle from Amp Sine is durable and functional with size 12 pin contacts. Operating at 25A this black receptacle is powerful and protected with an IP67 rated standard seal. Mates with ATP06-2S Plug

Product information

Manufacturer:	Amphenol Sine Systems
Color:	Black
Gender:	Male
Max Amperage:	25A
Temperature Rating Range:	-55°C to 125° C
Wire Gauge:	10-14AWG
Degree of Protection:	IP67
Contact Size:	12
Number of Cavities:	2
Wire Range:	10-14AWG
Contact Type (Pin/Socket/Plug):	Pin
Seal Diameter:	3.40mm - 4.95mm
Seal Wire Range:	3.40mm - 4.95mm
Seal Material:	Silicone Elastomer
Housing Material:	Thermoplastic
Mating Cycle Durability:	>100
Insulation Resistance:	1000 Megaohms at 25°C
Item Weight (kg):	0.0126
Group Type:	Low Pin Connectors

CAD & Technical

Documents

View CAD Model: ATP04-2P-BLK View 2D Drawing: ATP04-2P-BLK

Compliance & Shipping

Logistics Data

Box Quantity:	400
Unit Type:	Each
Ship From Location:	Ubstadt-Weiher, Baden-Württemberg, Germany

Compliance Data

Manufacturer Country:	MX
RoHS Compliant:	Yes

Related Part Numbers

Related Item	Sku	Description

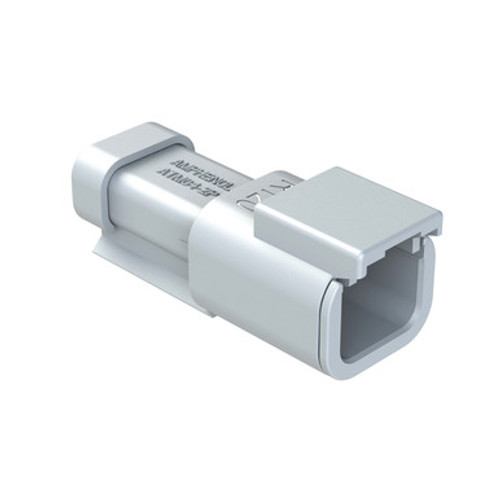

	ATM04-2P-RA120GY	Recept., 2 way, A key, terminating…
	ATM04-2P-0x84	Terminating Resistor Recept, 2-Way …
	ATM04-2P-0x89	Terminating Resistor Recept, 2-Way …
	ATP04-2P	Connector, Amphenol Sine, ATP Serie…
	AT16-18PD-EK02	Connector, Receptacle, 18 Pos, Key …

Competitors

Competitors Cross Reference

Interchangeable Part Numbers (Comments refer to differences in Chief's Part Numbers):

Competitor Part Number	Competitor	Comments	Direct replacement
DTP04-2P-E004	Deutsch		Yes No
