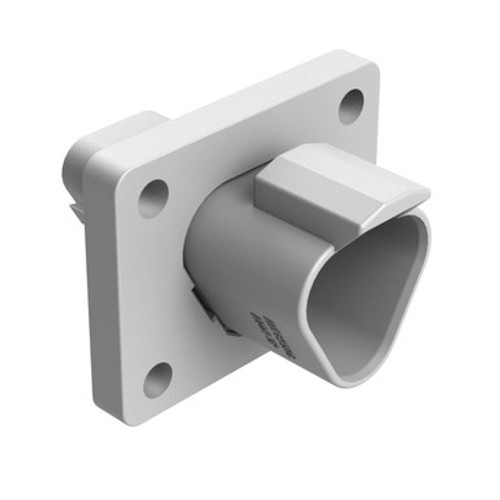

AT04-2P-L012 Amphenol Sine Connector

Amphenol Sine Systems

No reviews yet Write a Review
SKU:
AT04-2P-L012

Ship From Location: Ubstadt-Weiher, Baden-Württemberg, Germany

Standard Lead Time: 112 Days ? Estimated lead time from the manufacturer for quantities exceeding available stock.

Description
Connector, 2 Position Receptacle Flange Mount Connector, Pin, Gray, A Series

AT04-2P-L012 Amphenol Sine Connector

Amphenol Sine Systems

SKU:
AT04-2P-L012

Quantity discounts available

Quantity Price
1-9 €5,35
10-99 €4,28
100-149 €3,56
150-899 €1,78
900-9899 €1,65
9900-989999 €1,53

Box Quantity: 150

Standard processing may take up to 10 business days prior to shipment.

AT04-2P-L012 Amphenol Sine Connector

No reviews yet Write a Review
SKU:
AT04-2P-L012
€5,35
pdf2D Drawing pdfCAD Model
View details

Specifications

Detailed Description
This 2-way receptacle from Amp Sine is durable and functional with size 16 pin contacts and a flange mount. Operating at 13A and 250V this receptacle is powerful and protected with an IP67 rated standard seal. Mates with a AT06-2S Plug.
Product information
Manufacturer: Amphenol Sine Systems
Color: Gray
Gender: Male
Max Amperage: 13A
Contact Material: Copper Alloy, Nickel Plated
Wire Gauge: 16-20AWG
Degree of Protection: IP67
Contact Size: 16
Number of Cavities: 2
Wire Range: 14-20AWG
Contact Type (Pin/Socket/Plug): Pin
Seal Diameter: 2.24mm - 3.68mm
Rear Seal Type: Normal
Seal Material: Silicone Rubber
Housing Material: Thermoplastic
Mating Cycle Durability: >100
Insulation Resistance: 1000 Megaohm min at 25°C
Item Weight (kg): 0.0105
Group Type: Low Pin Connectors

CAD & Technical

Documents
View CAD Model: pdfAT04-2P-L012 View 2D Drawing: pdfAT04-2P-L012 View Data Sheet: pdfAT04-2P-L012

Compliance & Shipping

Logistics Data
Box Quantity: 150
Unit Type: Each
Ship From Location: Ubstadt-Weiher, Baden-Württemberg, Germany
Compliance Data
Manufacturer Country: MX
RoHS Compliant: Yes
