Specifications
Detailed Description

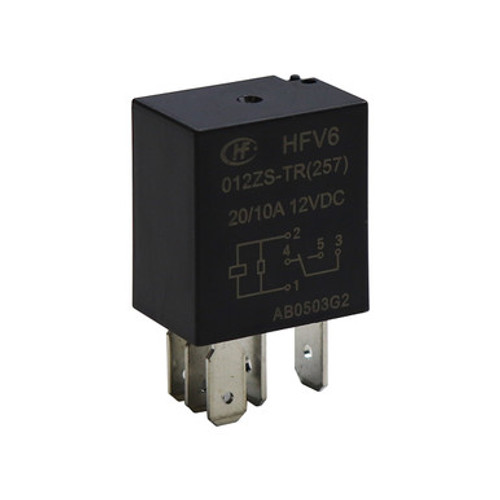

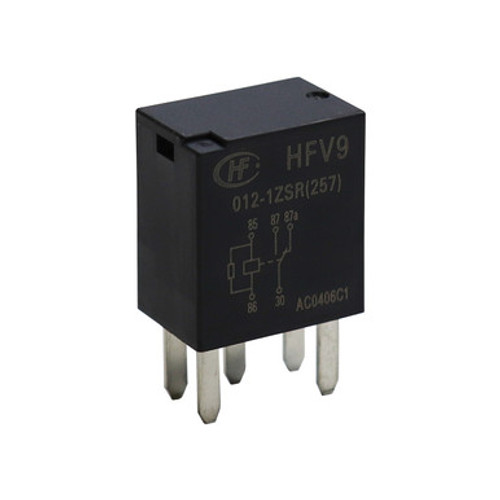

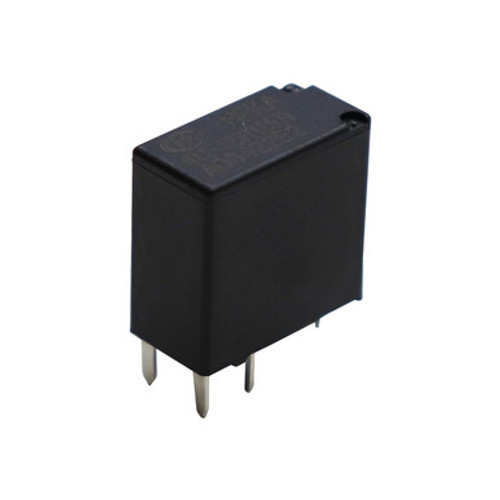

This automotive relay from HongFa is compact and capable operating at up to 30 A and 12 VDC. This micro ISO relay is plastic sealed and designed with a transient suppression resistor and a Form C contact. Ideal for Lighting Control, Headlight Control
Product information
| Manufacturer: | Hongfa America, Inc. |
| Max Amperage: | 30A |
| Contact Material: | AgSnO2 |
| Temperature Rating Range: | -40°C to 125°C |
| Voltage: | 12V |
| Typical Application(s): | Lighting control, Headlight control, Electromagnet control Air-conditioning, Heaters (seats, front/rear windows), Fan motors control, Fuel pump control, Wiper motors control |
| Form: | SPDT (1 Form C) |
| Insulation Resistance: | 100 megaohms |
| Dielectric Strength: | Between Coils and Contacts: 500VAC |
| Construction: | Plastic Sealed |
| Item Weight (kg): | 0.018869 |
| Group Type: | Micro ISO Relays |
