HFV11/12-HS-R(257) is a Replacement Part for Song Chuan 303-1AH-C-R1-U01-12VDC

Direct Drop-in Replacement Identified

No Space Example

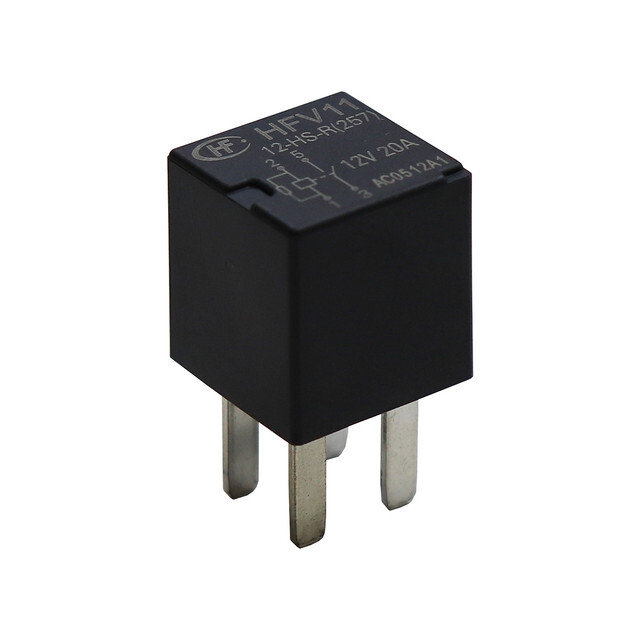

Song Chuan 303-1AH-C-R1-U01-12VDC Crosses to Hongfa HFV11/12-HS-R(257)

Chief stocks and distributes a direct drop-in replacement for Song Chuan automotive relay 303-1AH-C-R1-U01-12VDC. Hongfa part number HFV11/12-HS-R(257) is a micro 280 style relay capable of operating up to 20A at 12VDC. Single Pole, Single Throw (SPST) form.

Learn More

HFV11/12-HS-R(257) SPECIFICATIONS

Product Attribute	Attribute Value
Manufacturer	HongFa, Inc.
Product Category	Automotive Relay
Coil Voltage	12 VDC
Max Amperage	20A
Contact Form	SPST (1 Form A)
Vibration Resistance	10Hz - 40Hz 1.27mm DA
Shock Resistance	196m/s²
Construction	Plastic Sealed, Dust Protected
