HFV15/12-Z1ST-R(257) is a Replacement Part for Song Chuan 896H-1CH-C-R1-U03-12VDC

Direct Drop-In Replacement Identified

No Space Example

Song Chuan 896H-1CH-C-R1-U03 Crosses to Hongfa HFV15/12-Z1ST-R(257)

Chief stocks and distributes a direct drop-in replacement for Song Chuan automotive relay 896H-1CH-C-R1-U03-12VDC. Hongfa part number HFV15/12-Z1ST-R(257) is a mini ISO style relay capable of operating up to 40A at 12VDC. Single Pole, Double Throw (SPDT) form.

Learn More

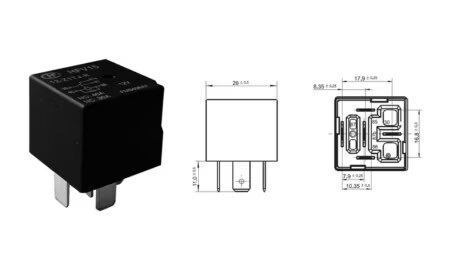

HFV15/12-Z1ST-R(257) SPECIFICATIONS

Product Attribute	Attribute Value
Manufacturer	HongFa, Inc.
Product Category	Automotive Relay
Coil Voltage	12 VDC
Max Amperage	40A
Contact Form	SPDT (1 Form C)
Vibration Resistance	5Hz - 22.3Hz 10mm DA
Shock Resistance	294m/s²
Construction	Plastic Sealed, Dust Protected
