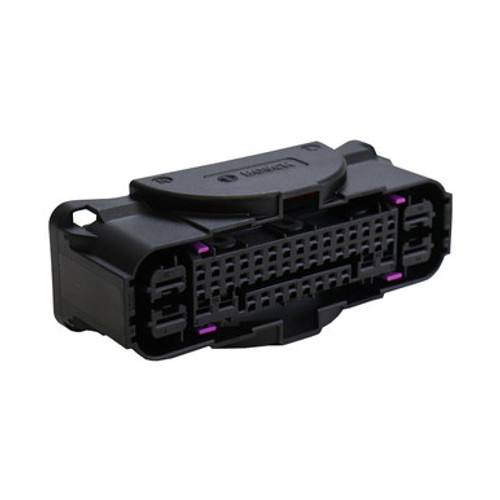

Bosch Black 46-Way Connector, All Open Cavities

Product information

Manufacturer:	Bosch
Color:	Black
Connector Code:	A
Gender:	Female
Sealed:	Yes
Overall Dimensions:	91.5 x 36.4 x 31.9mm
Secondary Locking:	Yes
Blade Width:	1.2 / 2.8 / 4.8mm
Body Material:	PA 66 GF
Temperature Rating Range:	-40°C to 125°C
Number of Cavities:	46
Connection System:	Wire-to-Device
Primary Locking (Terminal):	Clean-body
Vibration Resistance:	Car Body
Vibration Strength:	4.3G
Terminal Sealing:	Single Wire Seal
Type of Seal (Connector):	Radial Seal
Type of Seal (Cable):	Single Wire Seal
Type of Locking Mechanism (Connector):	Locking Lever
Item Weight (kg):	0.0442
Group Type:	High Pin Connectors

Compliance & Shipping

Logistics Data

Box Quantity:	240
Unit Type:	Each
Ship From Location:	Ubstadt-Weiher, Baden-Württemberg, Germany

Compliance Data

Manufacturer Country:	DE
RoHS Compliant:	No
Regulations & Restrictions:	This item may be restricted from export to Russia and Belarus under EU 833/2014 and 765/2006 regulation. See www.chiefent.com/restrictions for details.
