Detailed Description

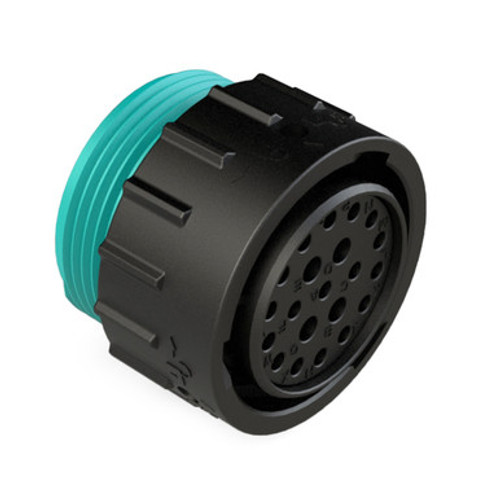

This 21-position female receptacle from Amp Sine is durable and functional with a wide thread and size 12 and 16 socket contacts. Operating at 25A and 13A , this receptacle is powerful and protected with an IP67 rated standard seal. Mates with AHDP06
Product information
| Manufacturer: | Amphenol Sine Systems |
| Color: | Black |
| Gender: | Female |
| Max Amperage: | 25A, 13A |
| Wire Gauge: | 10-14, 14-20AWG |
| Degree of Protection: | IP67 / IP69K |
| Contact Size: | 12,16 |
| Number of Cavities: | 21 |
| Wire Range: | 10-14, 14-20AWG |
| Contact Type (Pin/Socket/Plug): | Socket |
| Seal Diameter: | 2.46mm - 4.01mm , 1.35mm - 3.05mm |
| Rear Seal Type: | Reduced Diameter Seal |
| Seal Color: | Red |
| Seal Material: | Silicone Rubber |
| Housing Material: | Thermoplastic |
| Mating Cycle Durability: | >100 |
| Insulation Resistance: | 1000 Megaohm min at 25°C |
| Item Weight (kg): | 54.6 |
| Group Type: | Circular Connectors |
