Specifications

Detailed Description

31 Position Receptacle, Socket, Shell Size 24, Reduced Diameter Seal (Blue), Smooth Ring Adapter, Dust-cap Included

Product information

Manufacturer:	Amphenol Sine Systems
Number of Poles:	31
Color:	Black
Gender:	Female
Max Amperage:	13A
Wire Gauge:	14-20AWG
Degree of Protection:	IP67 / IP69K
Contact Size:	16
Number of Cavities:	31
Wire Range:	14-20AWG
Contact Type (Pin/Socket/Plug):	Socket
Seal Diameter:	1.35mm - 2.62mm
Rear Seal Type:	Reduced Diameter Seal
Seal Color:	Red
Seal Material:	Silicone Rubber
Housing Material:	Thermoplastic
Mating Cycle Durability:	>100
Insulation Resistance:	1000 Megaohm min at 25°C
Item Weight (kg):	0.053
Group Type:	Circular Connectors

CAD & Technical

Documents

View CAD Model: AHDP04-24-31SR-SRA View 2D Drawing: AHDP04-24-31SR-SRA View Data Sheet: AHDP04-24-31SR-SRA

Compliance & Shipping

Logistics Data

Box Quantity:	50
Unit Type:	Each
Cancelable or Returnable:	NCNR
Ship From Location:	Ubstadt-Weiher, Baden-Württemberg, Germany

Compliance Data

Manufacturer Country:	MX
RoHS Compliant:	TBD

Related Part Numbers

Related Item	Sku	Description
	AHDP04-24-29PR-SRA	Connector, DuraMate Plastic, AHDP, …
	AHDP04-24-16PN-SRA	Connectors, A Series, Size 24 recep…
	AHDP04-24-19PR-SRA	Connectors Size 24 receptacle, 19 p…
	AHDP04-18-08SN-SRA	Connectors Size 18 receptacle, 8 po…

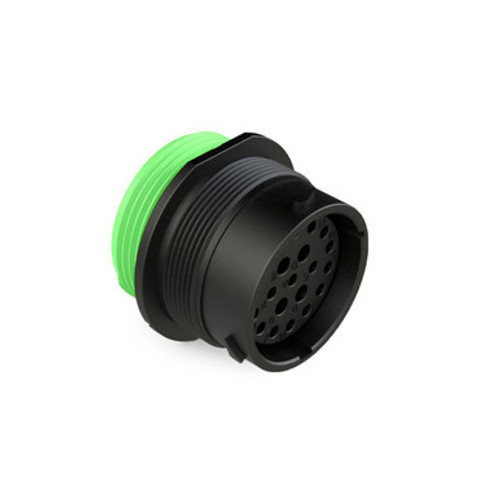

	AHDP04-24-21SN-WTA	Connector, Amphenol Sine, Duramate,…
