Detailed Description

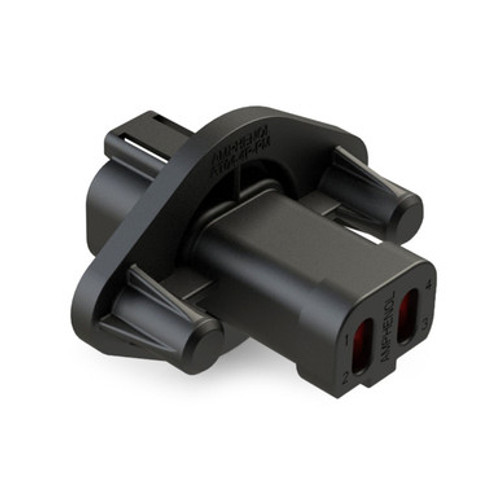

4 Position Receptacle, Pin, Nickel, Panel Mount, Self-Threading,, Self-Threading, Cap
Product information
| Manufacturer: | Amphenol Sine Systems |
| Color: | Black |
| Max Amperage: | 13A |
| Temperature Rating Range: | -55°C to 125° C |
| Wire Gauge: | 14-20AWG |
| Degree of Protection: | IP67 |
| Contact Size: | 16 |
| Number of Cavities: | 4 |
| Wire Range: | 14-20AWG |
| Contact Type (Pin/Socket/Plug): | Pin |
| Seal Diameter: | 2.24mm - 3.68mm |
| Seal Material: | Silicone Rubber |
| Housing Material: | Thermoplastic |
| Mating Cycle Durability: | >100 |
| Insulation Resistance: | 1000 Megaohm min at 25°C |
| Item Weight (kg): | 0.01944874 |
| Group Type: | Low Pin Connectors |
