Specifications
Detailed Description

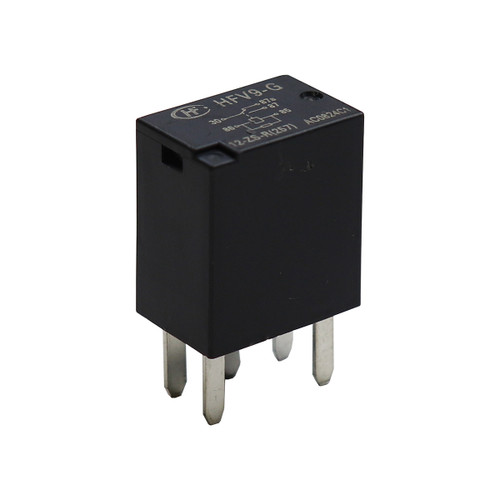

This automotive relay from HongFa is compact and capable operating at up to 35 A and 12 VDC. This micro 280 relay is plastic sealed and designed with easy plug-in mounting and a Form C contact. Ideal for Headlight Control, Fuel Pump Control, Horn Con
Product information
| Manufacturer: | Hongfa America, Inc. |
| Color: | Black |
| Max Amperage: | 35A |
| Contact Material: | AgSnO2 |
| Temperature Rating Range: | -40°C to 125°C |
| Voltage: | 12V |
| Product Family : | HFV9 |
| Typical Application(s): | Headlight control, Fuel pump control, Horn Control, A/C compressor clutch, Star / Stop control. |
| Form: | SPDT (1 Form C) |
| Insulation Resistance: | 100 megaohms |
| Dielectric Strength: | Between Coils and Contacts: 500VAC |
| Construction: | Plastic Sealed |
| Item Weight (kg): | 0.02 |
| Group Type: | Micro 280 Relays |
