HFV15/12-Z5T-R(257) Replacement for Song Chuan 896H-1CH-D1SW-R1-12VDC

Direkter Drop-In-Ersatz identifiziert

Kein Leerzeichen Beispiel

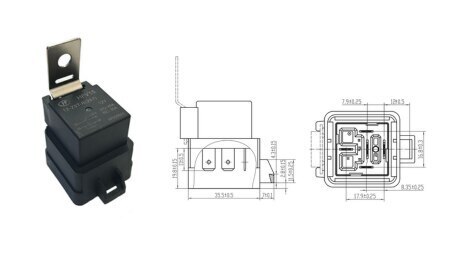

Song Chuan 896H-1CH-D1SW-R1-12VDC Crosses to Hongfa HFV15/12-Z5T-R(257)

Chief stocks and distributes a direct drop-in replacement for Song Chuan automotive relay 896H-1CH-D1SW-R1-12VDC. Hongfa part number HFV15/12-Z5T-R(257) is a mini ISO style relay capable of operating up to 40A at 12VDC. Single Pole, Single Throw (SPDT) 1 Form C.

Mehr erfahren

HFV15/12-Z5T-R(257) SPECIFICATIONS

Produkt-Attribut	Attribut Wert
Hersteller	HongFa, Inc.
Produktkategorie	Kfz-Relais
Spulenspannung	12 VDC
Maximale Stromstärke	40A
Kontakt-Formular	SPDT (1 Form C)
Vibrationsbeständigkeit	5Hz - 22,3Hz 10mm DA
Schockresistenz	294m/s²
Bauwesen	Flux Proofed with Bracket
